Electronic Battery Water Level Indicators
            Battery Electrolyte Level Indicators
Eagle Eye- Level Lite Optical

 Electronic Level Sensor

View Eagle Eye Installation Video

Eagle Eye, Flow-Rite’s latest line of Level Lights, accurately monitors and displays the status of cell electrolyte levels with a solid green or flashing red light. Patent pending Capacitive Sensing Technology, found in many electronics such as touch screen monitors and cell phones, allows Eagle Eye to measure electrolyte levels without using a conductive metal probe. The acid resistant plastic probe is exempt from corrosion and sulfating. Eliminating the need to run current through a conductive probe makes Eagle Eye the safest, most versatile, and reliable monitor on the market. Like all Flow-Rite products, Eagle Eye is proudly made in the USA.

• Plastic probe - no metal to sulfate or corrode,  may be trimmed to size
• Brightest level light on the market!
• Lowest profile light in the industry
• 20 second delay prevents false readings from splashing electrolyte
• Nickel ring terminals are epoxy sealed to wires to prevent corrosion
• Sealed polycarbonate lens protects the LED & electronics from impacts and acid migration.
• Power source can be independent of battery
• Double fused
• Reverse polarity protected
• 100% functionally tested
• Made in the USA
• U.S. and foreign patents pending

Print- Eagle Eye Brochure

Two available styles-

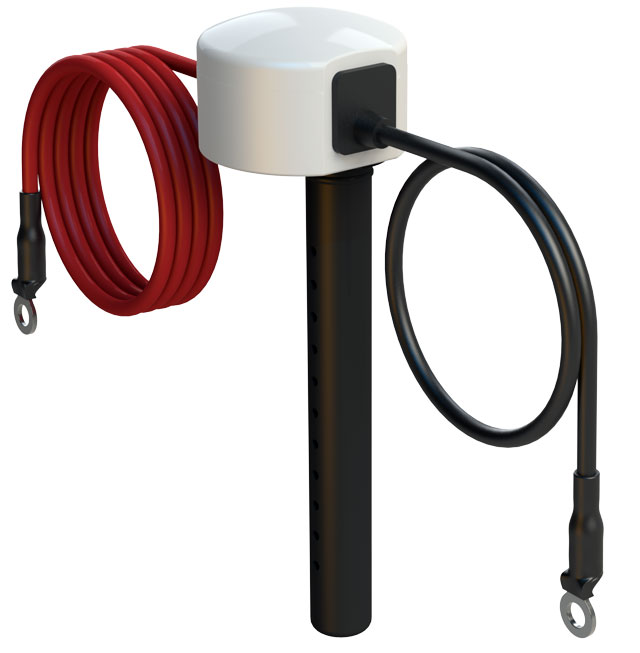

Eagle Eye- without remote indication
Eagle Eye Standard Length 1.95" (49mm) BA-491
Eagle Eye Extended Length 2.91" (59mm) BA-492

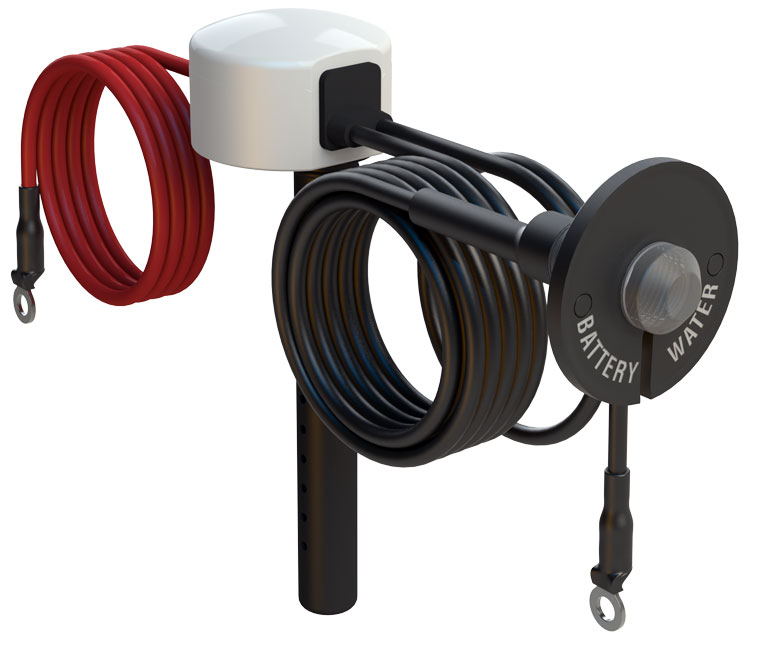

Eagle Eye II- with external indicator
Eagle Eye II Standard  Length 1.95" (49mm) BA-496
Eagle Eye II Extended Length 2.91" (49mm) BA-497

             Standard Electrolyte Level Sensor

The perfect solution to the age old problem of wondering when to water your batteries. When the probe is in contact with water your electrolyte leves is safe.

When the green light goes out, it's time to water.  This sensor is installed in the battery by drilling a 3/4" hole in one 2V cell with our BA-127 inspection hole drill.

Simply insert sensor into hole and connect to POSITIVE terminal.

Print- Electronic Level Sensor Drawing

Print- Sensor Installation Instructions

Standard Level Lite
 Standard Length 1.930" (49mm) BA-434
Long Length 3.005" (76mm) BA-435
Short- Special Order Only 1.305" (33mm) BA-433

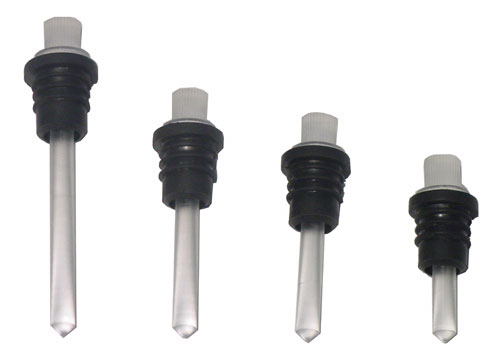

              Optical Electrolyte Level Sensor

The oprical level sensor comes in four differnet lengths and is installed by drilling a hole into the cell.  This sensor is installed in the battery by drilling a 3/4" hole in one 2V cell with our BA-127 inspection hole drill.

Print- Optical Sensor Drawing

 Standard 2.062" (52.5mm) BA-134
Long 2.500" (63.5mm) BA-135
Extral Long 2.750" (70mm) BA-136
Short 1.875" (48mm) BA-137

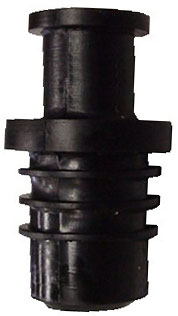

             Cell Inspection Plug- BD-107

Jan Watercraft Products
1334 Greenleaf Lane
Grand Haven,MI 49417




Electronic and Manual Electrolyte Level Indicators



Eagle Eye- Standard Length- 1.95"- PART
Code: JWP-BA-491
Price: $65.00
Quantity in Basket: none




Eagle Eye- Extended Length- 2.91"- PART
Code: JWP-BA-492
Price: $65.00
Quantity in Basket: none




Eagle Eye II- External Indication- 1.95" PART
Code: JWP-BA-494
Price: $85.00
Quantity in Basket: none




Eagle Eye II- External Indication- 2.91" PART
Code: JWP-BA-490
Price: $85.00
Quantity in Basket: none




Standard Level Lite- 1.93"- PART
Code: JWP-BA-434
Price: $24.00
Quantity in Basket: none




Extended Length Level Lite 3.006"- PART
Code: JWP-BA-435
Price: $24.00
Quantity in Basket: none




Optical Level Indicaor- Select Length
Code: JWP-BA-OLI
Price: $2.50
Quantity in Basket: none




Cell Inspection Plug- .75" Dia- PART
Code: JWP_BD-07
Price: $0.50
Quantity in Basket: none




.50" Drill- Curl Will Not Go Into Battery- PART
Code: JWP-BA-107
Price: $30.00
Quantity in Basket: none
